The 90mm Bi-LED headlights incorporate both the high and low beam into one projector module. One light source for each side of the vehicle.

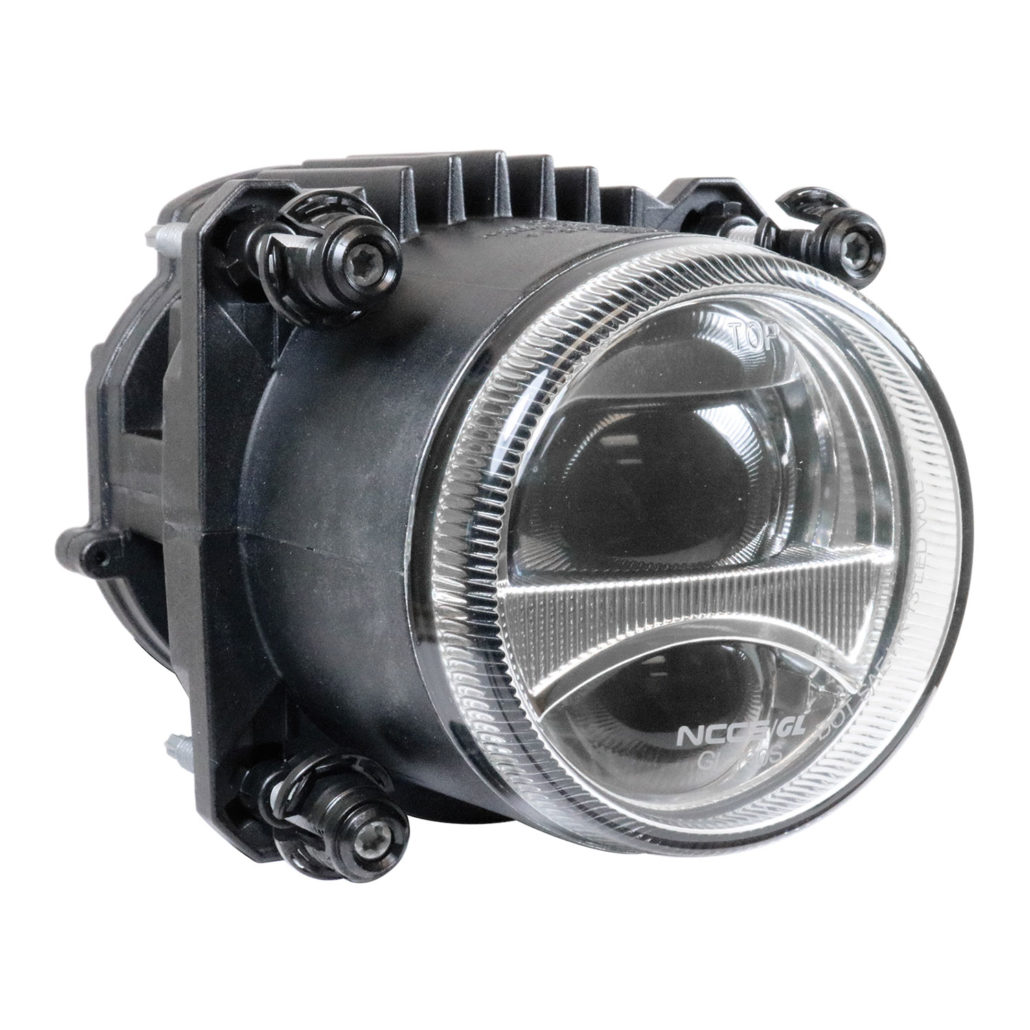

Hamsar 90MM Bi-LED High and Low Beam Headlight Module
Price:
Quick Links: Features / Benefits | Product Specifications | SKUs / Accessories |
Features / Benefits
- Bi-LED high and low beam – one projector module with one light source for each side of the vehicle
Product Specifications
- Operating Voltage 12 – 24Vdc
- Operating Current Low Beam: 3.3A @ 12Vdc 1.7A @ 24Vdc - High Beam: 4.2A @ 12Vdc 2.1A @ 24Vdc
- Power Consumption Low Beam: 40W - High Beam: 50W
- Temperature Range -40°C to +80°C
- Ingress Protection IP68 & IP69K
- Weight 2.9lbs (1.3kg)
- Housing Die Cast Aluminum – Black E-Coat
- Lens Hard-Coated Glass
- Connection Wire Harness with AMP Connector
- Polarity Reverse Voltage Protected
- Compliance FMVSS108 and CMVSS108 | ECE R10
SKUs / Accessories
71074 - Bi-LED High and Low Beam - 90mm - 12 - 24 Vdc
