The LED strobe beacons have 23 built-in flash patterns. They are highly visible and allow for multiple configurations with up to 360° of lighting. Both permanent mount and magnetic mount options are available.

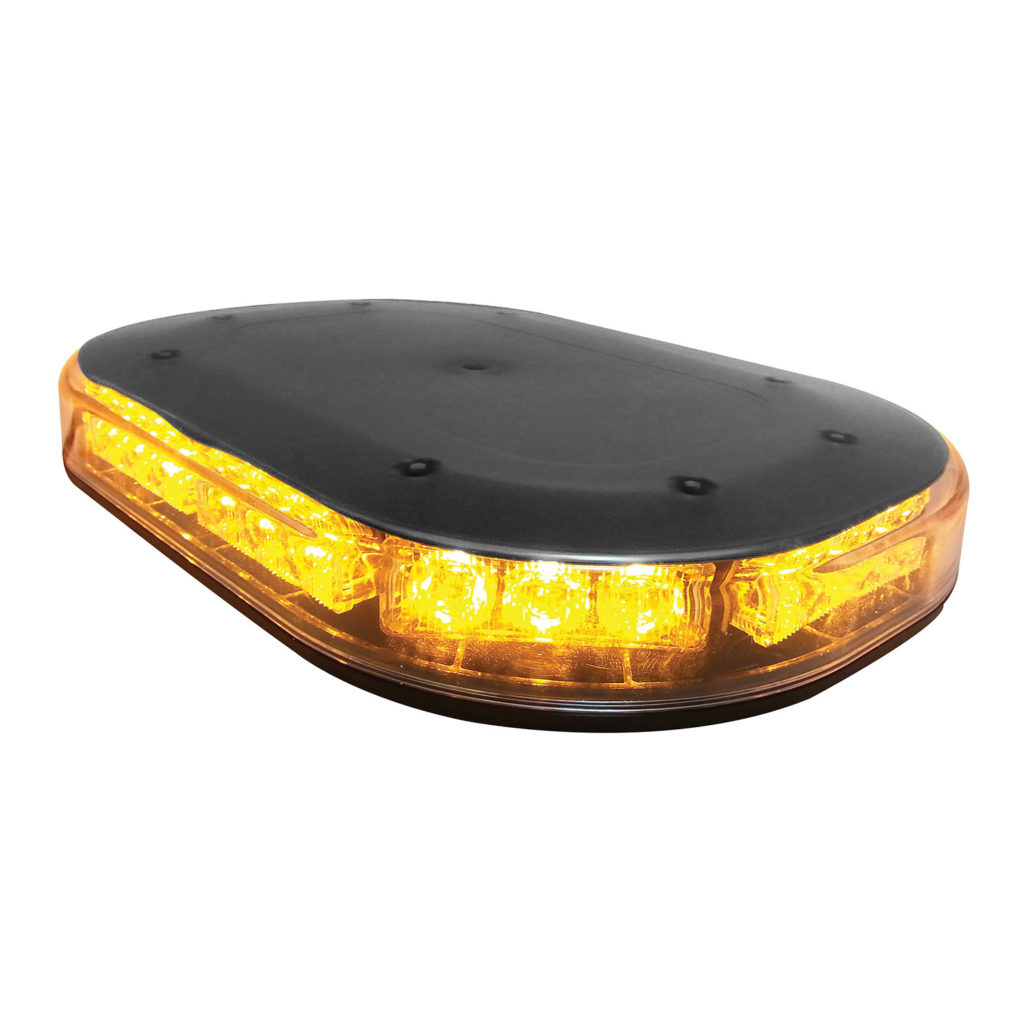

Hamsar LED Strobe Beacon - Oval
Price:
Buy This Product Now
Buy Now on
Quick Links: Features / Benefits | Flash Patterns | Product Specifications | SKUs / Accessories |
Features / Benefits
- 12 -24Vdc – use on pick-up trucks, cars or heavy duty vehicles
- 23 built-in flash patterns – highly visible, multiple configurations with up to 360° of lighting
- Multiple unit synchronization – enhance visibility further with coordinated flash patterns
- Low profile design – provides more stability, better weight distribution and saves fuel
- Permanent mount or magnetic mount – flexible mounting options – leave on, remove or use on other fleet vehicles
Flash Patterns
- 0 Random
- 1 Rotating
- 2 Single (Split)
- 3 Double (Split)4 Quad (Split)
- 5 Quint (Split)
- 6 Mega (Split)
- 7 Ultra (Split)
- 8 Single – Quad (Split)
- 9 Single H / L (Split)
- 10 Single (All)
- 11 Double (All)
- 12 Quad (All)
- 13 Quint (All)
- 14 Mega (All)
- 15 Ultra (All)
- 16 Single – Quad (All)
- 17 Single H / L (All)
- 18 Steady 2 (California)
- 19 Single (2Hz)
- 20 Double (2Hz)
- 21 Triple (2Hz)
- 22 Quad (2Hz)
Product Specifications
- LEDs 30
- LED Color Amber
- Operating Voltage 12 – 24Vdc
- Operating Current 2.1A @ 12Vdc (varies with flash pattern) - 1.0A @ 24Vdc (varies with flash pattern) - Max Current: 4.2A @ 12Vdc - 2.1A @ 24Vdc
- Power Consumption 25W - Max Power Consumption: 50W
- Temperature Range -50°C to +60°C
- Ingress Protection IP69K
- Weight 2.8lbs (1.3kg)
- Housing Black ABS
- Lens Polycarbonate

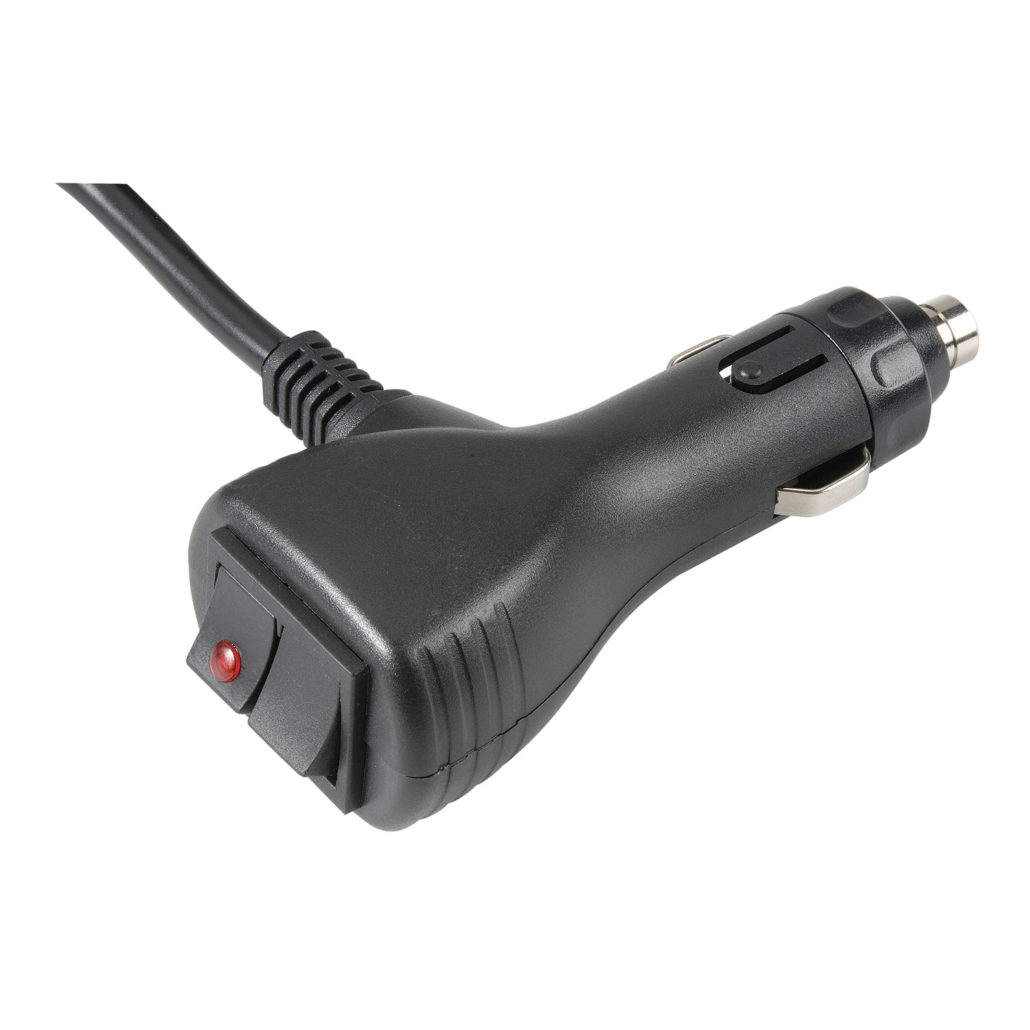

- Connection Permanent Mount: Wire Leads - Magnetic Mount: 12Vdc Plug - Fuse Recommended: 8A
- Compliance SAE J845 Class 1 - CA Title 13
- Mounting Permanent
SKUs / Accessories
81542 - LED Strobe Beacon - Permanent Mount - 12 - 24 Vdc
