The XWL-812 Select series work lights deliver 1500 lumens of illumination. These compact LED work lights also have a built in electronic thermal management system that monitors and self-regulates the LED lamp case temperature, thereby reducing heat output which improves LED service life.

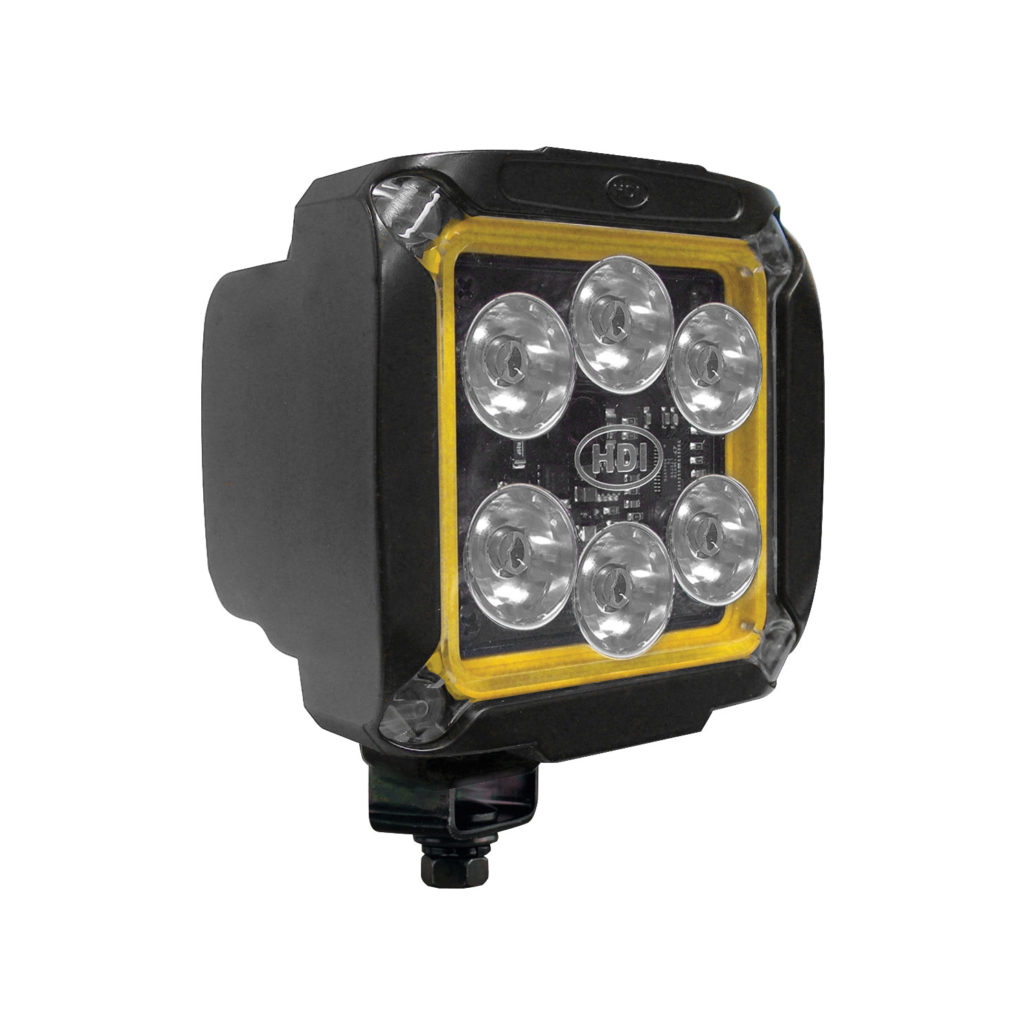

Hamsar XWL-812 Select Series Work Light - 6 LED
Price:
Quick Links: Features / Benefits | Product Specifications | SKUs / Accessories |
Features / Benefits
- 1500 lumens
- Die cast aluminum housing & polycarbonate lens virtually unbreakable
- IP68 & IP69K – will withstand dust, dirt and sand, and is resistant to submersion up to a maximum depth of 1.5m underwater for up to thirty minutes
- Low current draw – energy efficient, save on fuel costs as it consumes less energy (15W)
- Constant current circuit draw – light does not dim even if voltage fluctuates
- 3 beam patterns – get light where it’s needed for the job
- 50,000+ hours LED service life & 5 year warranty
- Electronic Thermal Management System – a built-in device that monitors and self-regulates the LED lamp case temperature, thereby reducing heat output which improves LED service life
Product Specifications
- Operating Voltage 12 – 24Vdc
- Operating Current 1.3A @ 12Vdc | 0.6A @ 24Vdc
- Power Consumption 15W
- Temperature Range -40°C to +60°C
- Ingress Protection IP68 & IP69K
- Weight 1.5lbs (0.7kg)
- Housing Die Cast Aluminum – Black E-Coat
- Lens Automotive Optical Grade Hard-Coated Polycarbonate

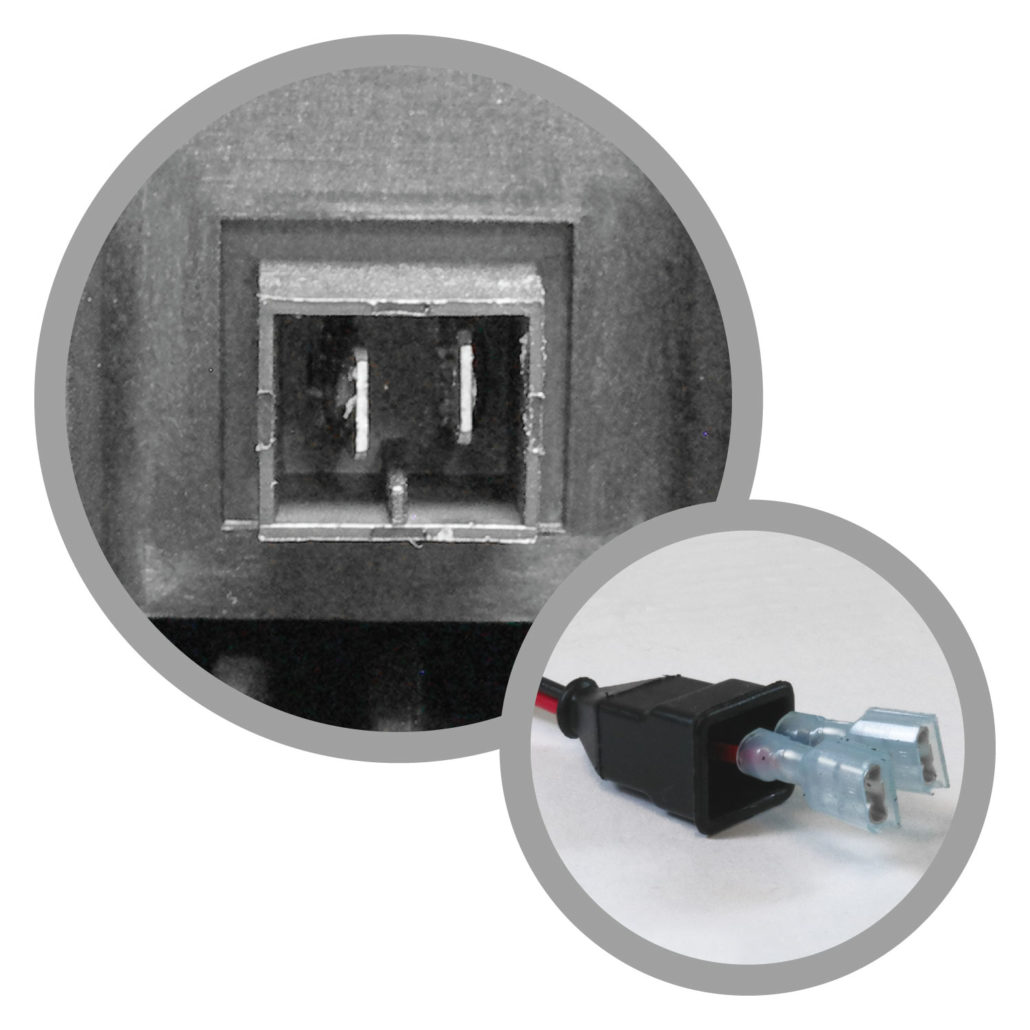

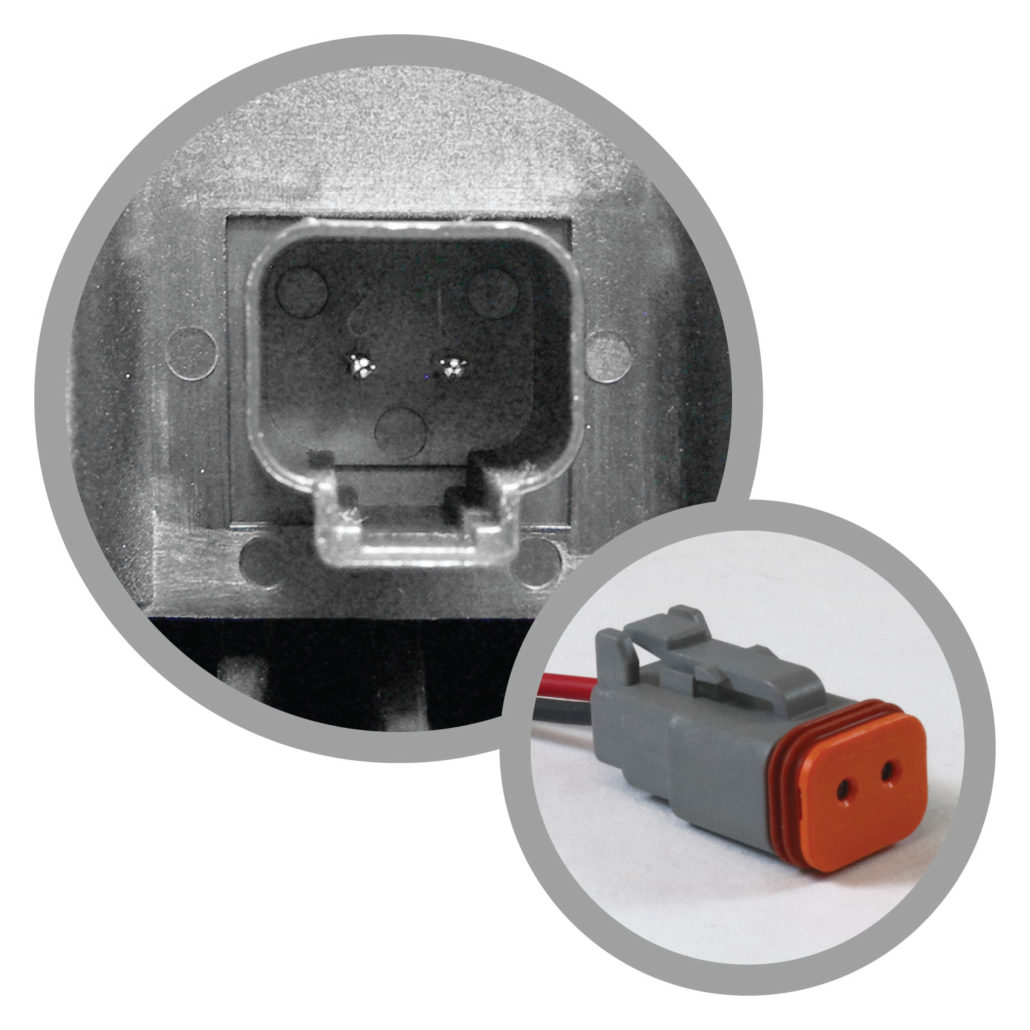

- Connection Tyco or Deutsch
- Polarity Reverse Voltage Protected
- Vibration Resistance 10-500Hz @ 5Grms

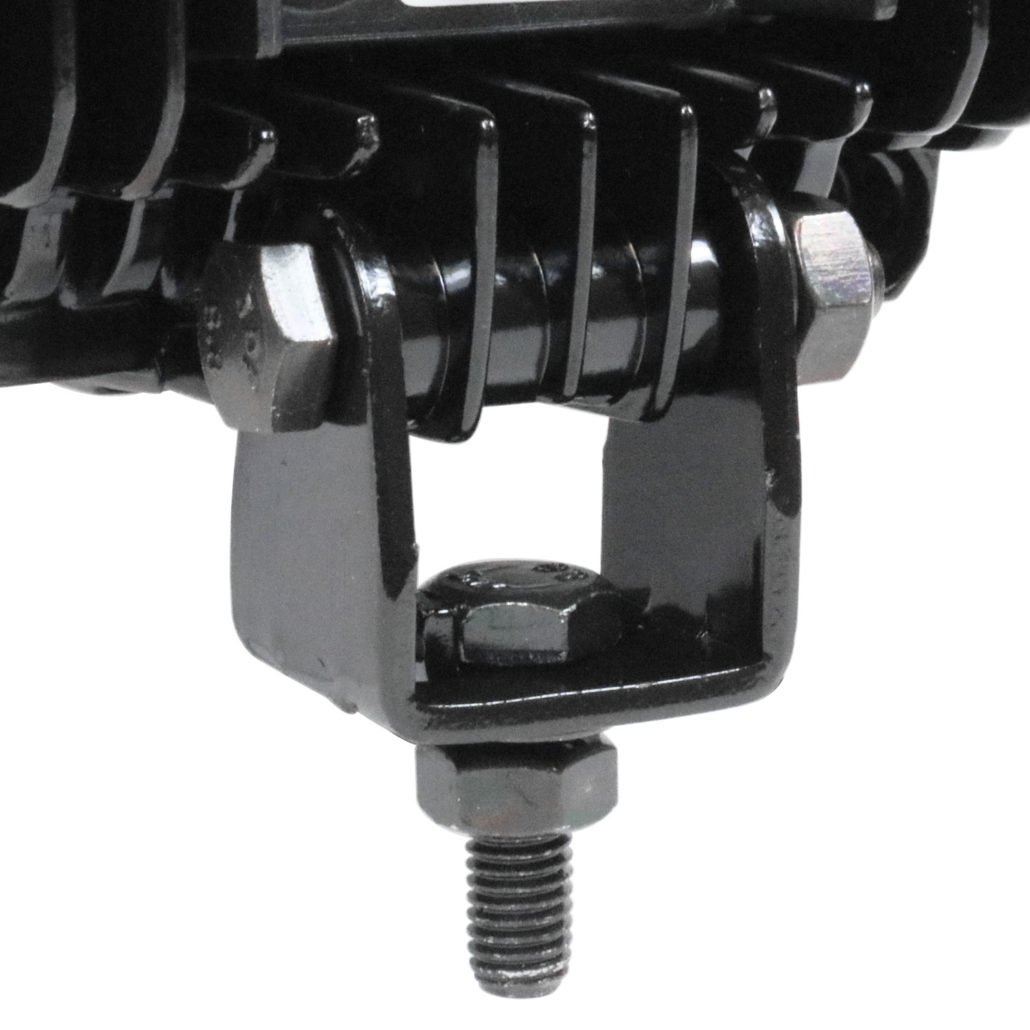

- Mounting U-Bracket
- EMC Rated EMC EN 13309: 2010
SKUs / Accessories
81641/B - Tyco Connector - Spot - 1500 Lumens - 12 - 24 Vdc
81642/B - Tyco Connector - Medium Flood - 1500 Lumens - 12 - 24 Vdc
81643/B - Tyco Connector - Hybrid - 1500 Lumens - 12 - 24 Vdc
81641/C - Deutsch Connector - Spot - 1500 Lumens - 12 - 24 Vdc
81642/C - Deutsch Connector - Medium Flood - 1500 Lumens - 12 - 24 Vdc
81643/C - Deutsch Connector - Hybrid - 1500 Lumens - 12 - 24 Vdc

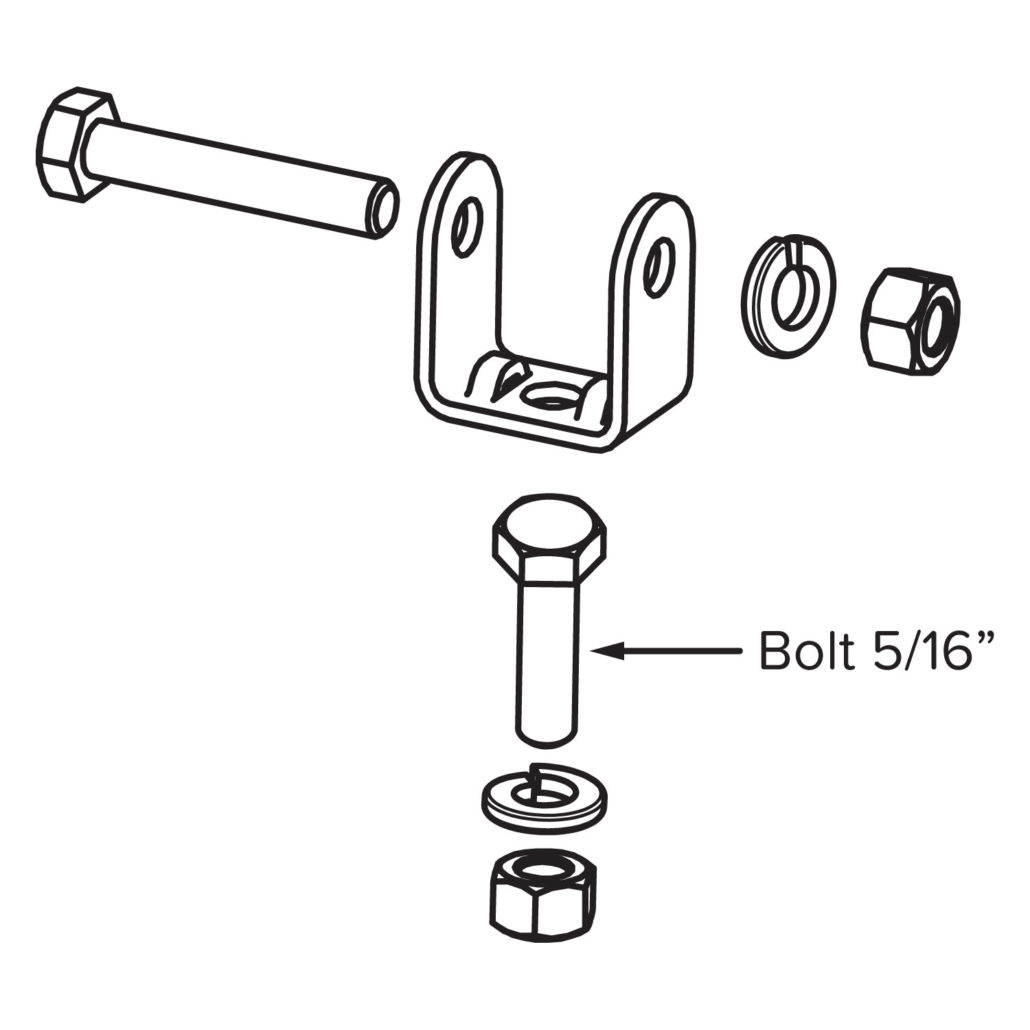

81291HW - Accessories - Hardware Kit - U-Bracket & Bolt
98195 - Accessories - Easy Grip Handle - Black
